| Filling Volume: | 20ml-500ml |
|---|---|
| Filling Precision: | ±1.0% |
| Capacity: | 30-100 pieces per min |
| Power: | 5-20KW customized |
| Pressure: | 0.6～0.8Mpa |
| Air consumption pressure: | 0.8～1.2m³/min |
| Sealing temperature: | 0～400 degrees adjustable |
| Voltage: | 220V/380 50HZ or customized |
| Size: | 3500*850*1920mm |
| Weight: | 1000kg |
*We respect your confidentiality and all information are protected.

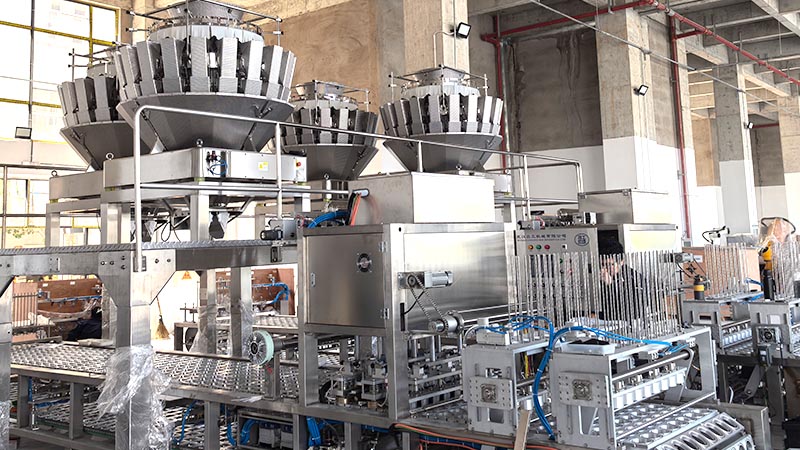

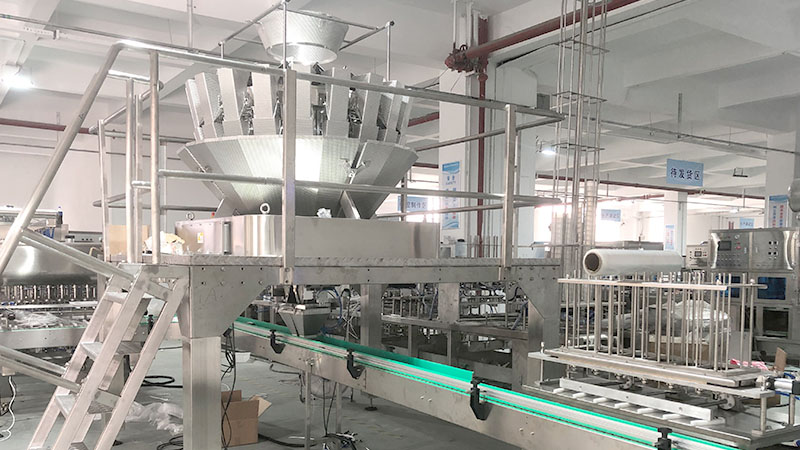

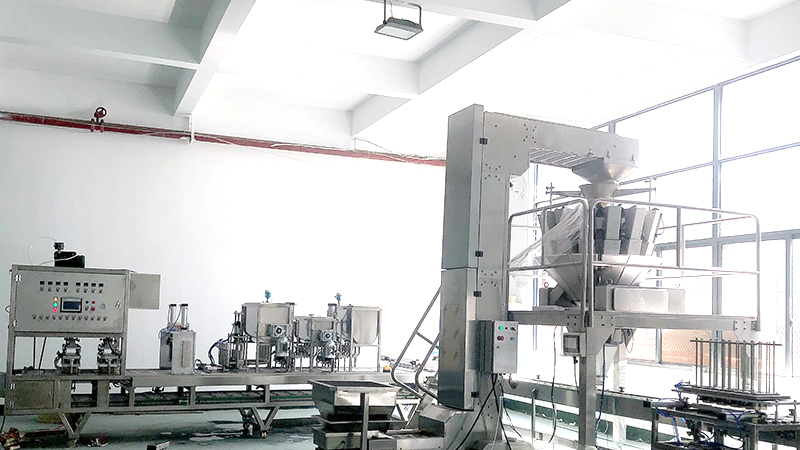

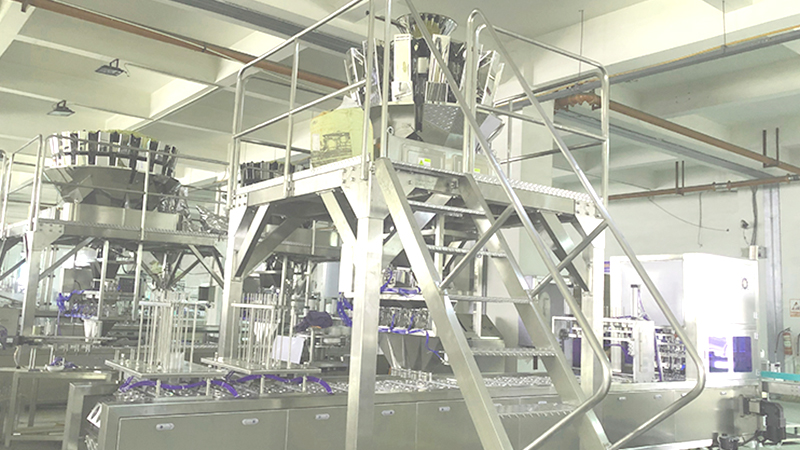

The multi-head weigher cup filling and sealing machine is an automatic packaging equipment that integrates material weighing, filling and sealing. It is suitable for oatmeal, cereal crisps, stirred yogurt cups, as well as granules, flakes, pickles, etc.
The multi-head weigher cup filling and sealing machine is an automatic packaging equipment that integrates material weighing, filling and sealing. It is suitable for oatmeal, cereal crisps, stirred yogurt cups, as well as granules, flakes, pickles, etc.
1. Working Principle

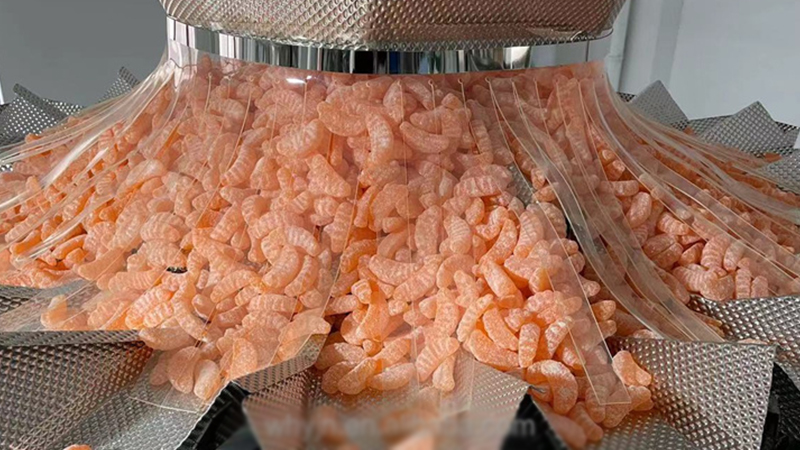

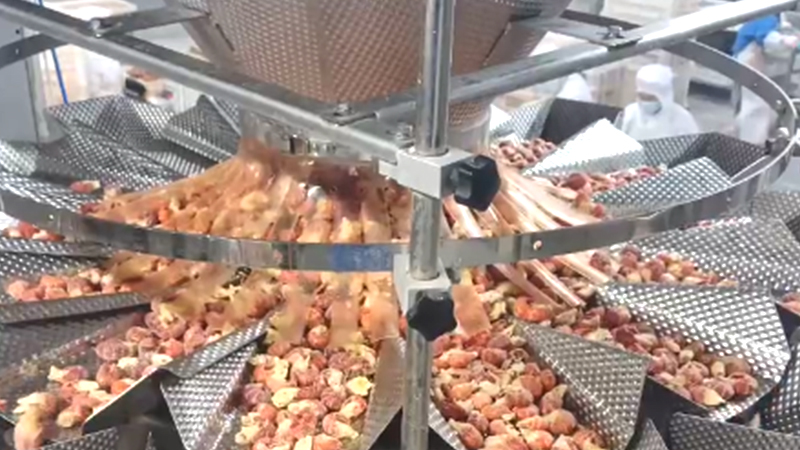

Multi-head weighing
The equipment is equipped with multiple independent weighing units (such as 10 heads, 14 heads, 20 heads, etc.), which can quickly weigh granular and block materials at the same time, and achieve high-precision quantification through combined calculation (error is usually ≤±0.5%).
Applicable to materials with different densities and fluidity, such as nuts, candies, sauces, etc.
Automatic filling
The weighed materials are injected into the cup through the lower hopper or conveying pipeline. The filling method can be selected according to the characteristics of the material. Gravity, plunger or peristaltic pump.
Some models are equipped with photoelectric detection to ensure that no cup is not filled to avoid material waste.
Sealing process
Heat sealing technology: The cup mouth is fused with sealing materials such as aluminum foil and plastic film through heating elements (such as hot plates or ultrasonic waves) to form a seal.
Electromagnetic induction sealing: Electromagnetic induction is used to make the aluminum foil instantly heat up to achieve aseptic sealing, which is often used in medicine or high-demand food packaging.
Automated process
The whole process is coordinated by the PLC control system, including cup supply, filling, sealing, testing, discharging and other links, supporting parameter preset and real-time monitoring.
2. Core features
Efficient production
The multi-head scale design can greatly increase production capacity (such as 60-120 cups/minute), which is suitable for large-scale production needs.
Support multi-specification cup switching and achieve flexibility by changing molds.
High-precision measurement
The weighing sensor is combined with the dynamic compensation algorithm to ensure the consistent weight of each cup and reduce manual intervention.
Sanitary design
The material contact parts are made of 304 stainless steel or food grade material, which meets GMP standards and is easy to clean and maintain.
Some models are equipped with dust covers or negative pressure systems to prevent contamination.
Intelligent control
The human-machine interface (touch screen) supports recipe storage, fault alarm and remote monitoring, and is easy to operate.
