| Filling Volume: | 20ml-500ml |
|---|---|
| Filling Precision: | ±1.0% |
| Capacity: | 30-100 pieces per min |
| Power: | 5-20KW customized |
| Pressure: | 0.6～0.8Mpa |
| Air consumption pressure: | 0.8～1.2m³/min |
| Sealing temperature: | 0～400 degrees adjustable |
| Voltage: | 220V/380 50HZ or customized |
| Size: | 6500*850*1920mm |
| Weight: | 2000kg |
*We respect your confidentiality and all information are protected.

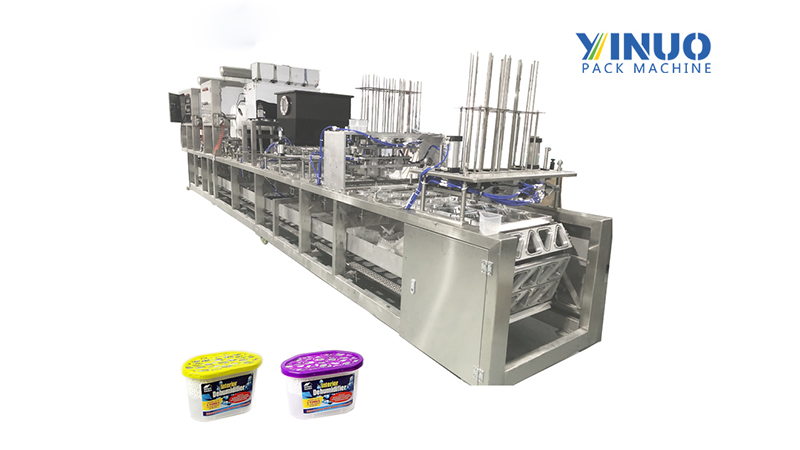

The dehumidification box filling and sealing machine is an automated packaging equipment, which is mainly used to quantitatively fill granular or powdered desiccants (such as calcium chloride, activated carbon, etc.) into plastic boxes or aluminum foil boxes, and complete the sealing and labeling processes to form a finished dehumidification box.
The dehumidification box filling and sealing machine is an automated packaging equipment, which is mainly used to quantitatively fill granular or powdered desiccants (such as calcium chloride, activated carbon, etc.) into plastic boxes or aluminum foil boxes, and complete the sealing and labeling processes to form a finished dehumidification box. This type of equipment is widely used in daily chemical, chemical, food and other industries, especially for the production of moisture-proof products that are in high demand during the rainy season.

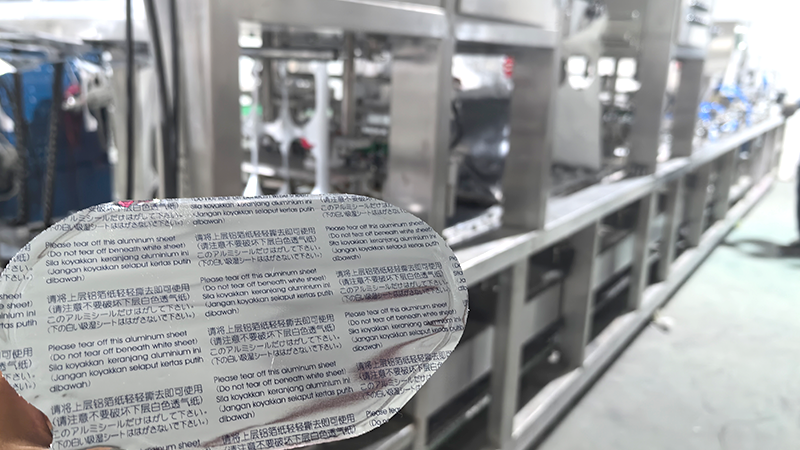

Dehumidification box/desiccant aluminum foil film non-woven filling sealing and capping machine is researched and manufactured by Yijianuo Machinery Company.The machine can achieve box auto falling, auto put the inner tray, auto filling calcium chloride into the box, auto sealing the non-woven cloth and the aluminum foil, and auto capping the lid.
Dehumidification box filling and sealing machine core functions and features:

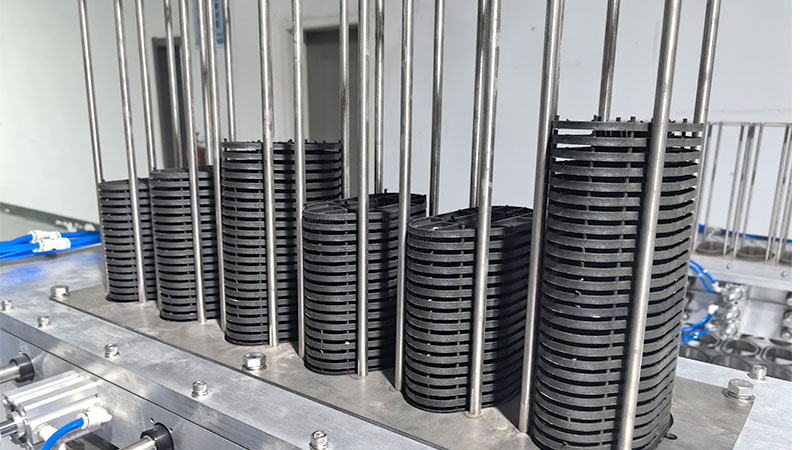

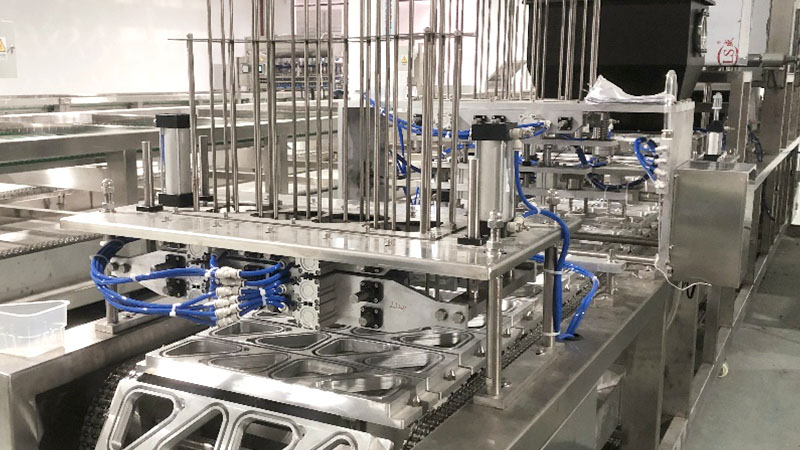

Integrates automatic box dropping, quantitative filling, secondary hot pressing and sealing (non-woven fabric + aluminum foil film), film cutting, cup discharging and other functions, and can be connected to subsequent labeling, shrink packaging and other assembly line equipment to achieve full process automation.

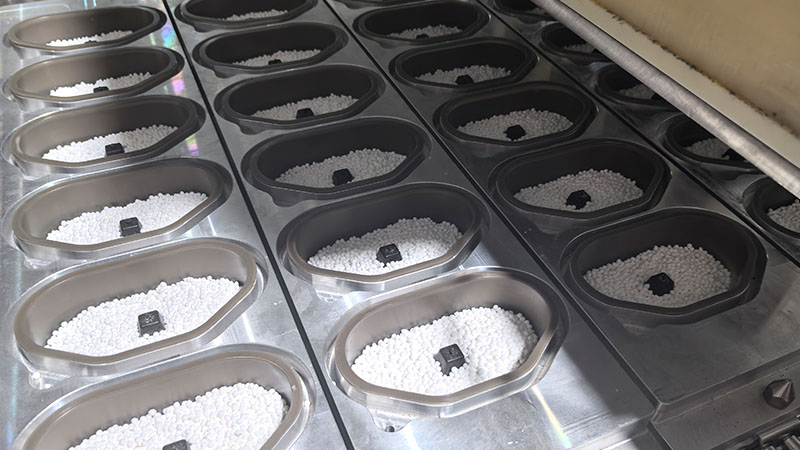

Adopting a measuring cup filling system, the filling volume can be freely adjusted (such as 450g/box) with small error.
The transmission system uses a cam divider and a stepper motor for precise positioning and smooth operation.

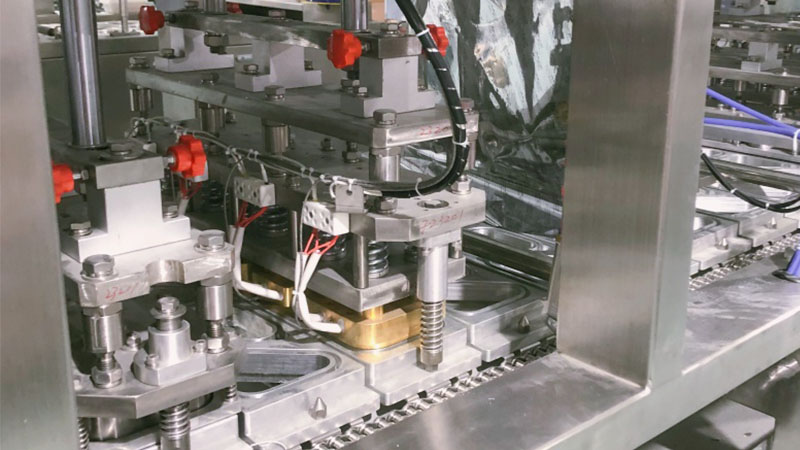

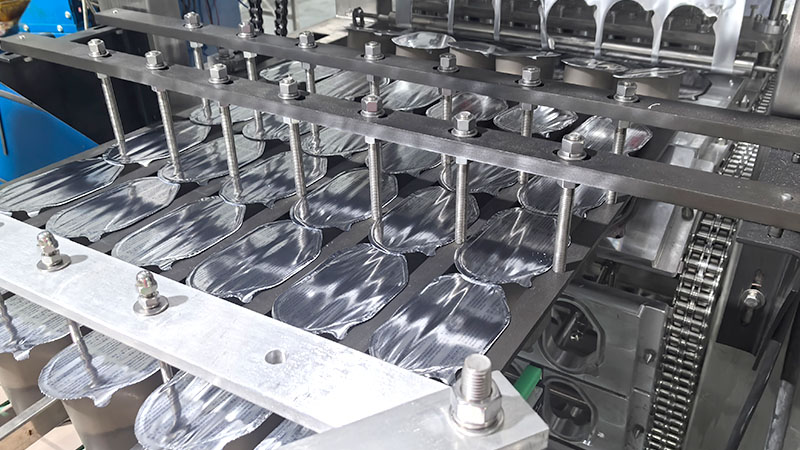

Secondary hot pressing and sealing ensures sealing and avoids desiccant leakage.
Box size, filling volume, and sealing film material (such as aluminum foil, non-woven fabric) can be customized according to needs.
The frame is made of all stainless steel, and the acid-resistant aluminum mold is corrosion-resistant and adaptable to different production environments.
The output of a single device can reach 1500-1800 boxes/hour (about 4 seconds/time, 2 boxes are sealed each time), which is suitable for large-scale production.
Dehumidification box filling and sealing machine application scenarios:
Desiccant production: such as household dehumidification boxes, wardrobe moisture-proof boxes, etc.
Food packaging: such as cup sauces, pre-prepared dishes, lunch boxes, etc. (need to cooperate with vacuum or gas conditioning technology).
Daily chemical products: such as liquid detergents, fragrances, etc.
