| Filling Volume: | 20ml-500ml |
|---|---|
| Filling Precision: | ±1.0% |
| Capacity: | 30-100 pieces per min |
| Power: | 5-20KW customized |
| Pressure: | 0.6～0.8Mpa |
| Air consumption pressure: | 0.8～1.2m³/min |
| Sealing temperature: | 0～400 degrees adjustable |
| Voltage: | 220V/380 50HZ or customized |
| Size: | 3500*850*1920mm |
| Weight: | 1000kg |
*We respect your confidentiality and all information are protected.

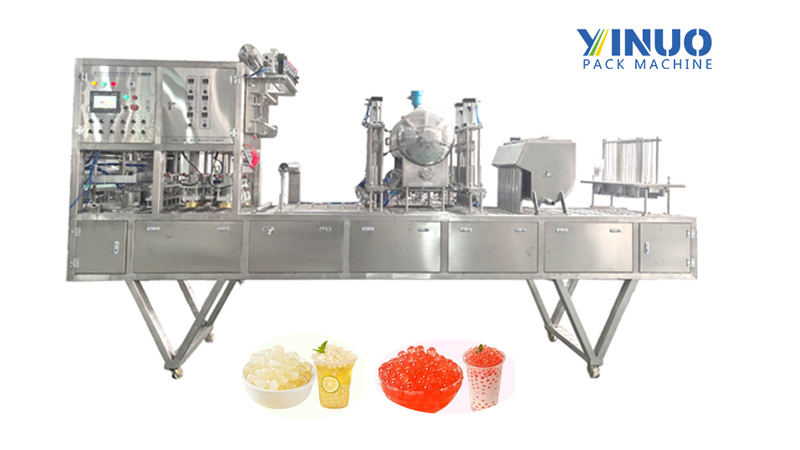

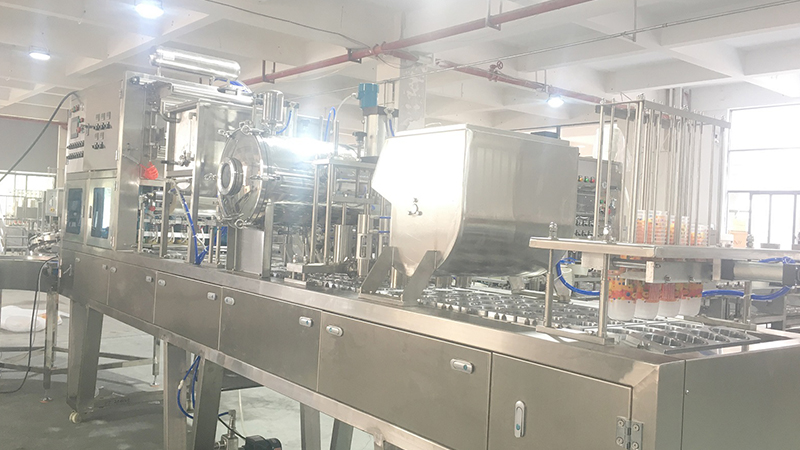

The bubble/boba/popping ball tea cup filling and sealing machine is a packaging equipment used to fill buble/boba/popping ball into specific containers such as cups and seal them. It is widely used in food, beverage and other industries.
The bubble/boba/popping ball tea cup filling and sealing machine is a packaging equipment used to fill boba/popping ball into specific containers such as cups and seal them. It is widely used in food, beverage and other industries.
Structural composition:
Frame part: generally made of high-quality carbon steel welded, covered with 304 stainless steel, and equipped with solid bolts at the ground contact to ensure the stability and durability of the machine, while meeting food hygiene standards.
Transmission system: composed of motor, reducer, cam divider, template, transmission chain, etc., to provide power and transmission for each action of the machine to ensure the coordinated operation of various components.

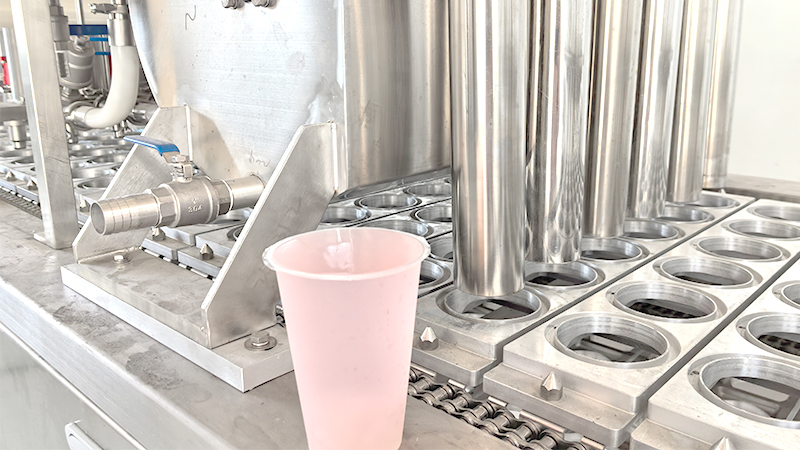

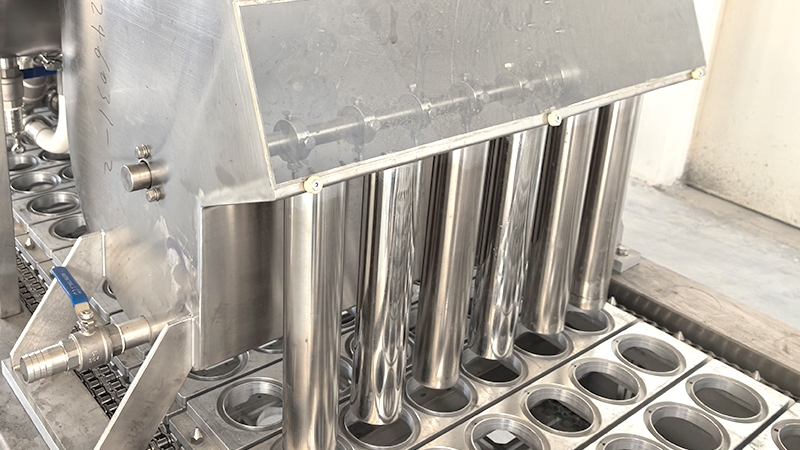

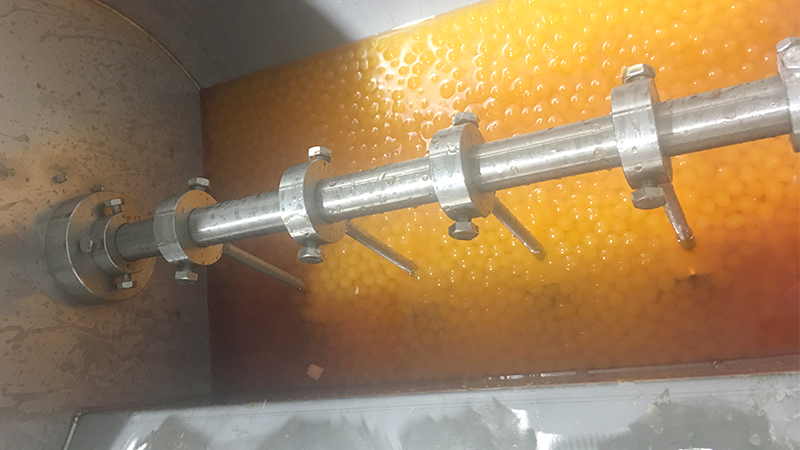

Filling system: including hopper, conveying pump, metering device and filling head, etc., to achieve accurate filling of popping beads. Among them, the hopper is used to store the raw materials of popping beads, the conveying pump conveys the raw materials from the hopper to the filling head, the metering device controls the filling amount, and the filling head accurately injects the popping beads into the packaging container.
Sealing system: usually adopts constant temperature (intelligent temperature control) hot press sealing, the sealing head is copper or aluminum combination, easy to replace, and the sealing pressure is adjustable. In addition, it may also be equipped with a cooling device to quickly cool the sealing part after sealing to make the sealing more firm.
Control system: Programmable logic controller (PLC) is mostly used as the control core, equipped with a human-machine interface. Operators can set and adjust working parameters such as filling volume, sealing temperature, sealing time, production speed, etc. through touch screen or buttons. At the same time, it can also realize fault alarm, automatic shutdown and other functions, which is convenient for operation and maintenance.
Application field:
Food industry: Mainly used for filling and sealing of popping balls in drinks such as milk tea, juice, yogurt, etc., and can also be used for small-dose packaging of foods such as jelly and pudding.
Pharmaceutical industry: Suitable for filling and sealing of some small pharmaceutical capsules or granules, such as health product capsules, Chinese medicine pills, etc.
Cosmetics industry: Can be used for small-dose packaging of some pastes and emulsions, such as eye cream, lip gloss, etc.
