| Filling Volume: | 120g-200g |
|---|---|
| Filling Precision: | ±10% |
| Capacity: | 30-100 pieces per min |
| Power: | 5-20KW customized |
| Pressure: | 0.6～0.8Mpa |
| Air consumption pressure: | 0.8～1.2m³/min |
| Sealing temperature: | 0～400 degrees adjustable |
| Voltage: | 220V/380 50HZ or customized |
| Size: | 5000*850*1920mm |
| Weight: | 2000kg |
*We respect your confidentiality and all information are protected.

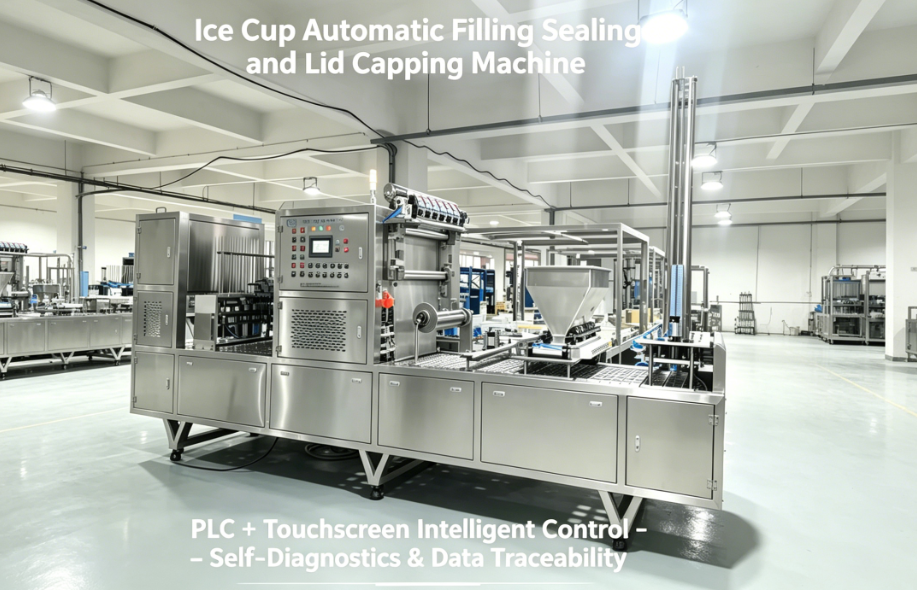

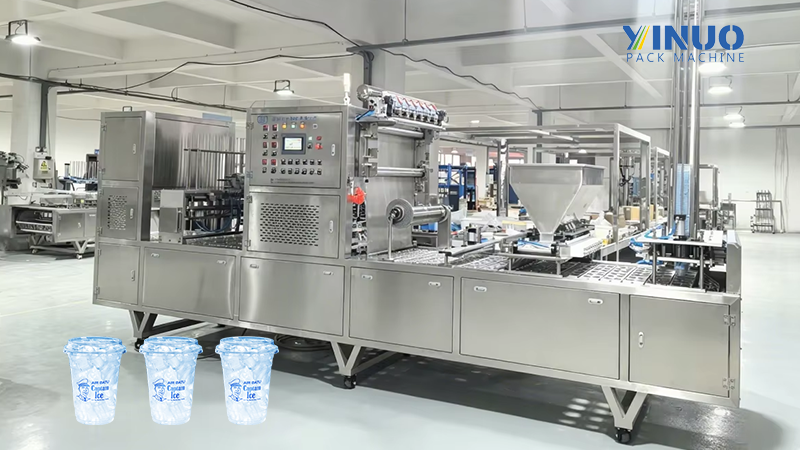

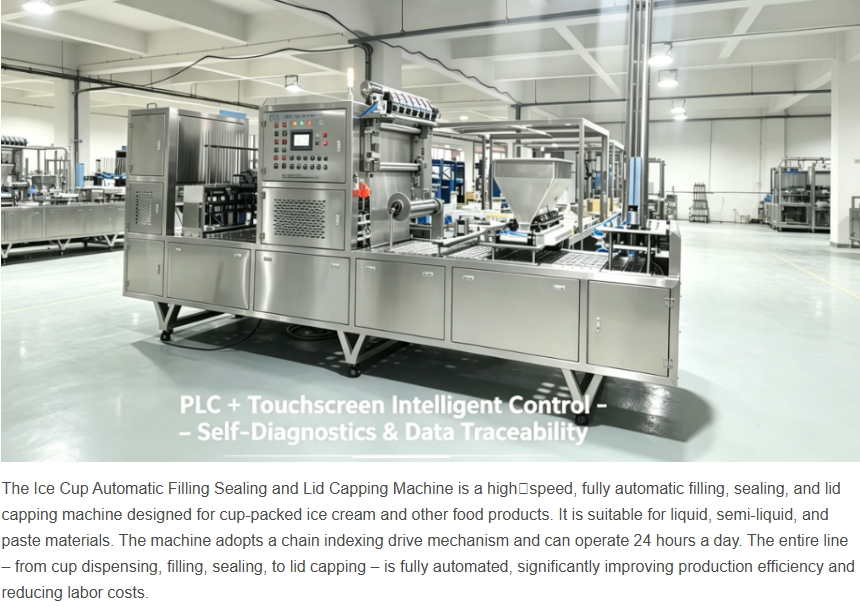

The Ice Cup Automatic Filling Sealing and Lid Capping Machine is a highspeed, fully automatic filling, sealing, and lid capping machine designed for cup-packed ice cream and other food products. It is suitable for liquid, semi-liquid, and paste materials. The machine adopts a chain indexing drive mechanism and can operate 24 hours a day. The entire line – from cup dispensing, filling, sealing, to lid capping – is fully automated, significantly improving production efficiency and reducing labor costs.

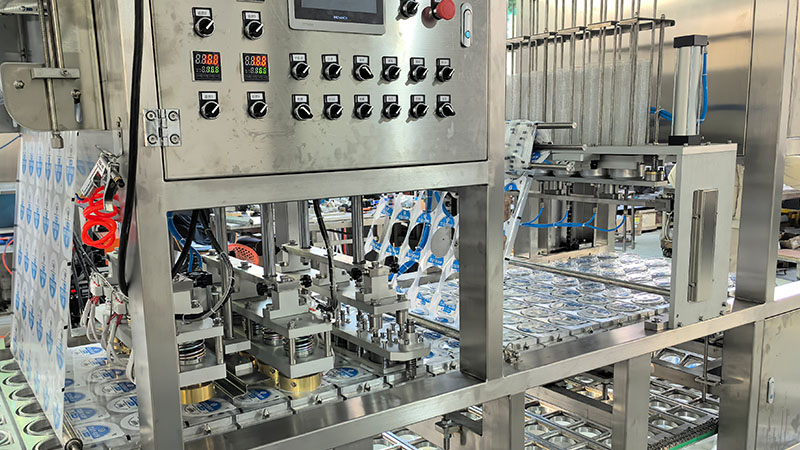

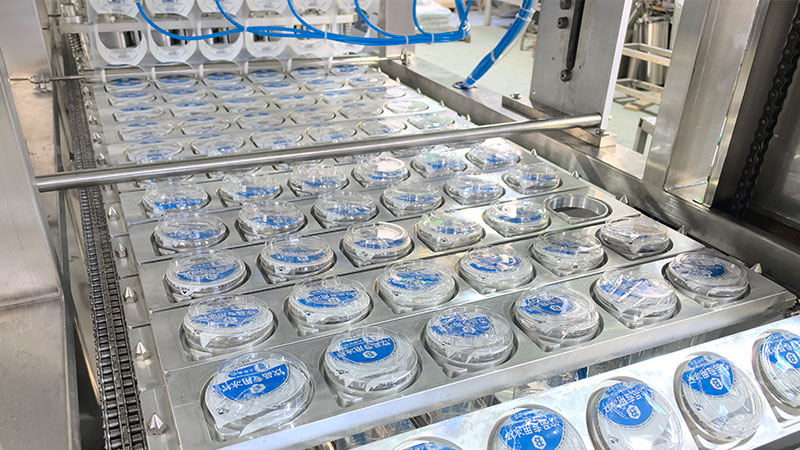

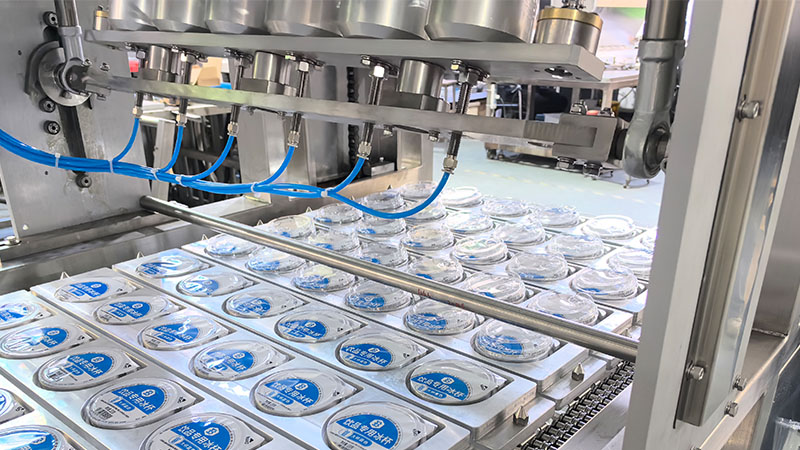

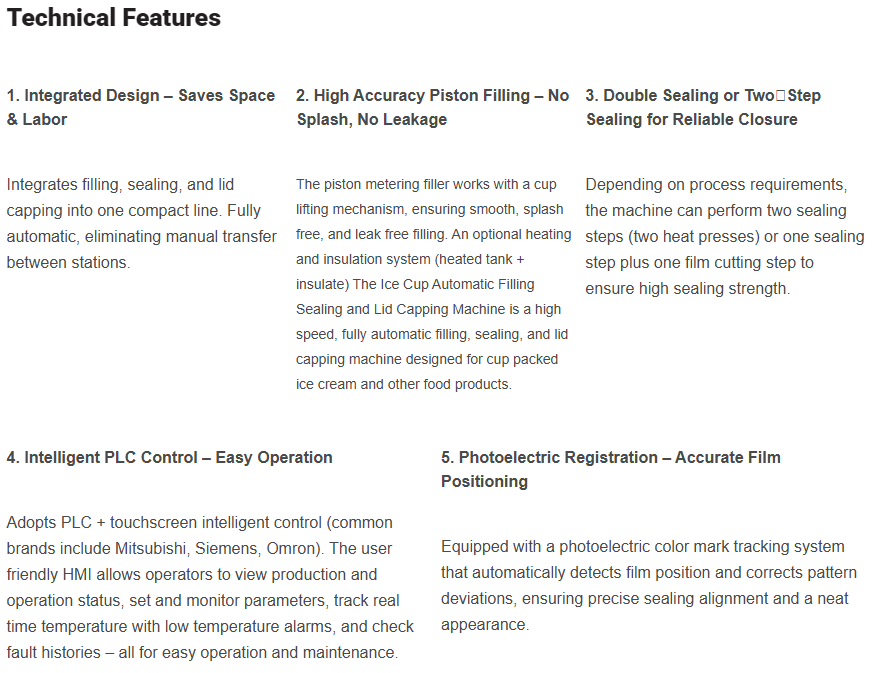

Integrates filling, sealing, and lid capping into one compact line. Fully automatic, eliminating manual transfer between stations.

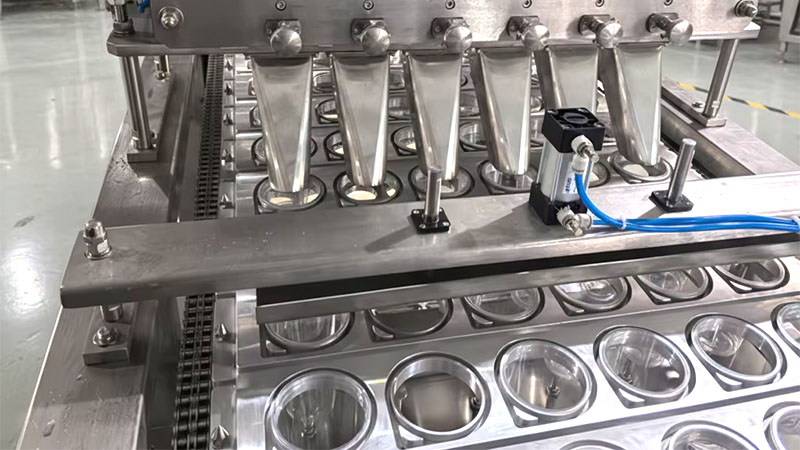

The piston metering filler works with a cup lifting mechanism, ensuring smooth, splash free, and leak free filling. An optional heating and insulation system (heated tank + insulatThe Ice Cup Automatic Filling Sealing and Lid Capping Machine is a high speed, fully automatic filling, sealing, and lid capping machine designed for cuppacked ice cream and other food products.

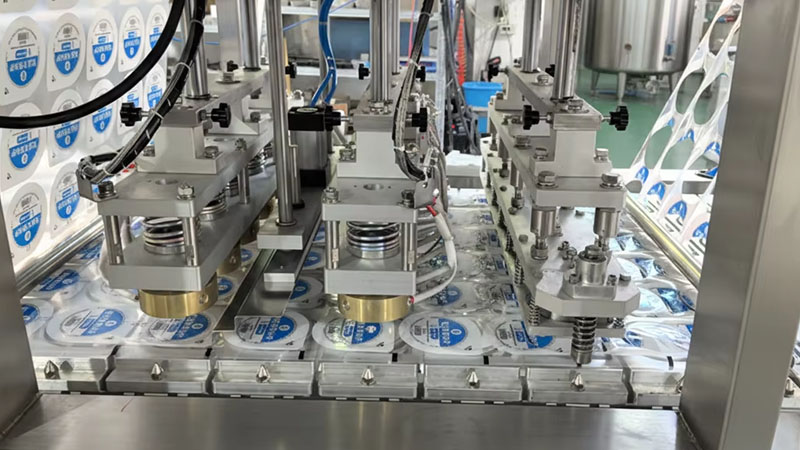

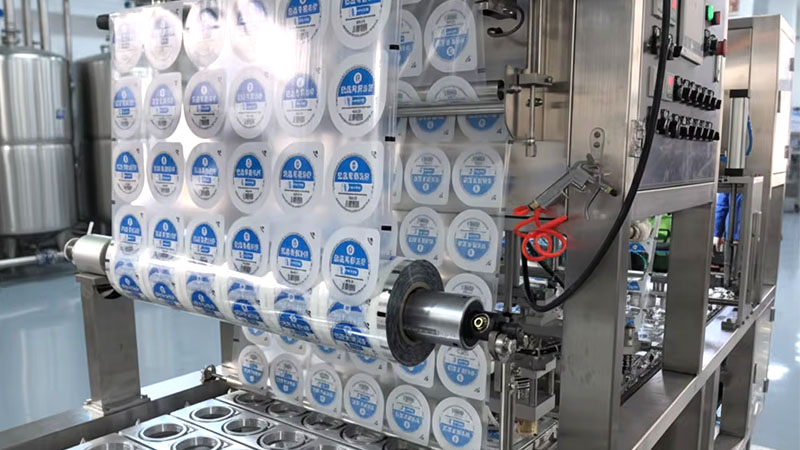

Depending on process requirements, the machine can perform two sealing steps (two heat presses) or one sealing step plus one film cutting step to ensure high sealing strength.

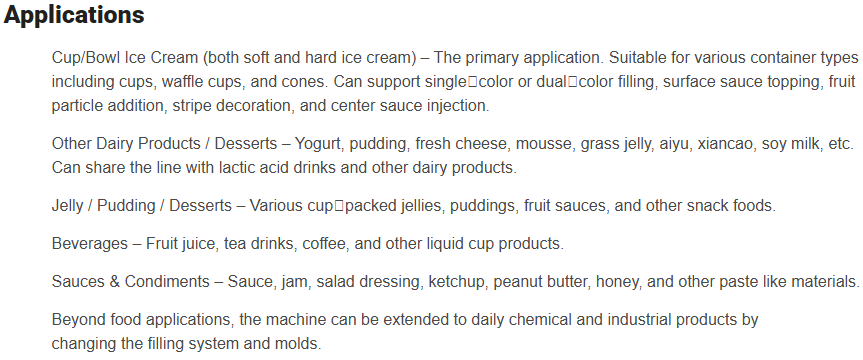

Cup/Bowl Ice Cream (both soft and hard ice cream) – The primary application. Suitable for various container types including cups, waffle cups, and cones. Can support singlecolor or dualcolor filling, surface sauce topping, fruit particle addition, stripe decoration, and center sauce injection.
Other Dairy Products / Desserts – Yogurt, pudding, fresh cheese, mousse, grass jelly, aiyu, xiancao, soy milk, etc. Can share the line with lactic acid drinks and other dairy products.
Jelly / Pudding / Desserts – Various cuppacked jellies, puddings, fruit sauces, and other snack foods.
Beverages – Fruit juice, tea drinks, coffee, and other liquid cup products.
Sauces & Condiments – Sauce, jam, salad dressing, ketchup, peanut butter, honey, and other pastelike materials.
Beyond food applications, the machine can be extended to daily chemical and industrial products by changing the filling system and molds.
