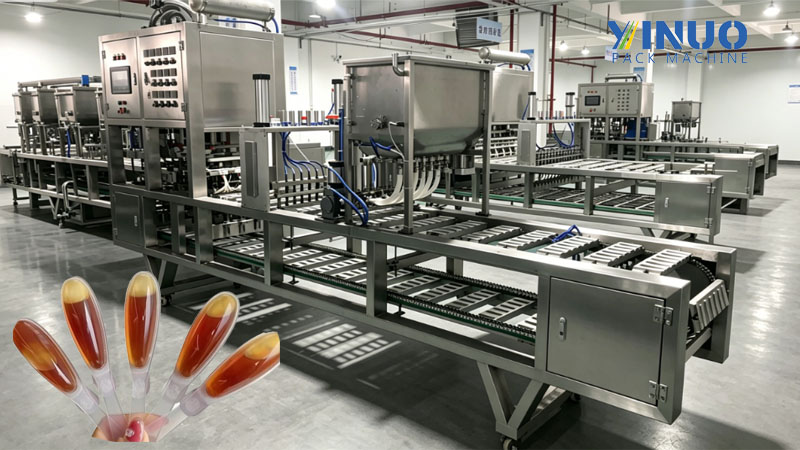

The Honey Spoon Filling Machine is a fully automated packaging system capable of precisely dispensing fluids—such as honey—into spoon-shaped containers and subsequently sealing them. Designed to address issues associated with manual operations—including low efficiency, difficulties in maintaining hygiene, and susceptibility to leaks—this machine is specifically engineered for high-viscosity, high-value products, thereby ensuring both efficient production and superior packaging quality.
**Working Principles and Standard Process**
The core operational workflow of the equipment is as follows:

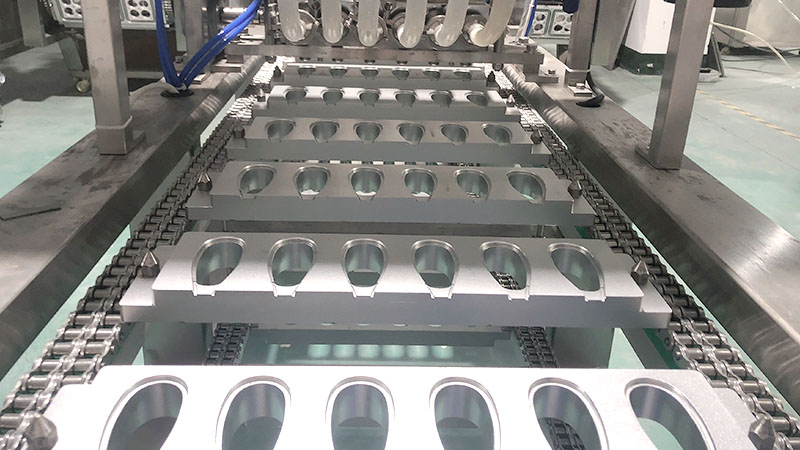

**Automatic Spoon Placement:** Utilizing pneumatic vacuum suction cups, the system automatically picks up spoons from the storage area and precisely places them into the molds.

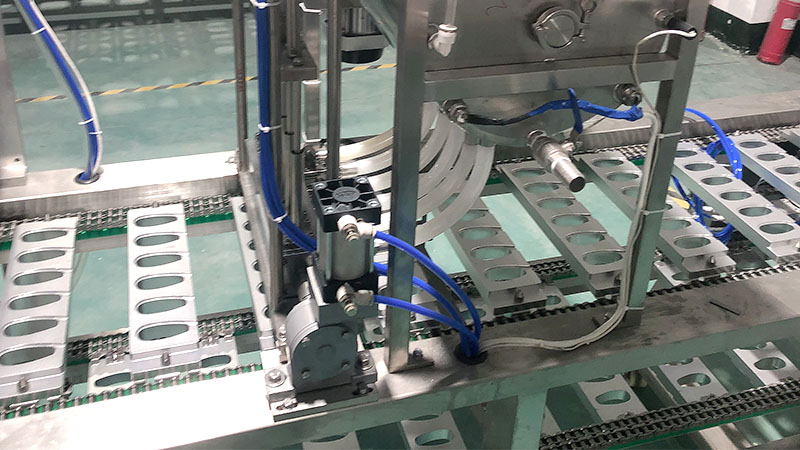

**Precision Filling:** A piston pump is employed to precisely control the filling volume; additionally, the system features a heated material hopper to ensure the proper flow of high-viscosity substances (such as honey), thereby achieving accurate filling.
**Automatic Film Placement:** The system automatically positions the sealing film (e.g., aluminum foil laminate) over the spoon opening, utilizing a photoelectric sensor tracking system to ensure precise alignment of the printed pattern.
**Dual Heat Sealing:** Through a two-stage heat-sealing process, a robust and secure seal is achieved, effectively preventing leakage and ensuring product safety during transportation and storage.
**Finished Product Output:** Upon completion of the sealing process, the equipment automatically ejects the finished spoons from the molds and conveys them to the subsequent processing stage or collection area.
Four Core Advantages
Precise and Efficient: The equipment operates fully automatically 24 hours a day; a single unit can replace 8–10 workers, significantly saving on labor costs while boosting production capacity.
Precise Filling: Utilizing high-precision piston pumps, filling accuracy is maintained within ±1%, thereby minimizing the waste of expensive materials.
Hygienic and Reliable: All components in contact with the materials are constructed from food-grade 304 or 316 stainless steel, ensuring the hygiene and safety of the production process.
Rapid ROI: By saving on both materials and labor, the investment payback period typically ranges from six months to one year, effectively enhancing profit margins in the long run.
