| Filling Volume: | 20ml-500ml |
|---|---|
| Filling Precision: | ±1.0% |
| Capacity: | 30-100 pieces per min |
| Power: | 5-20KW customized |
| Pressure: | 0.6～0.8Mpa |
| Air consumption pressure: | 0.8～1.2m³/min |
| Sealing temperature: | 0～400 degrees adjustable |
| Voltage: | 220V/380 50HZ or customized |
| Size: | 3500*850*1920mm |
| Weight: | 1000kg |
*We respect your confidentiality and all information are protected.

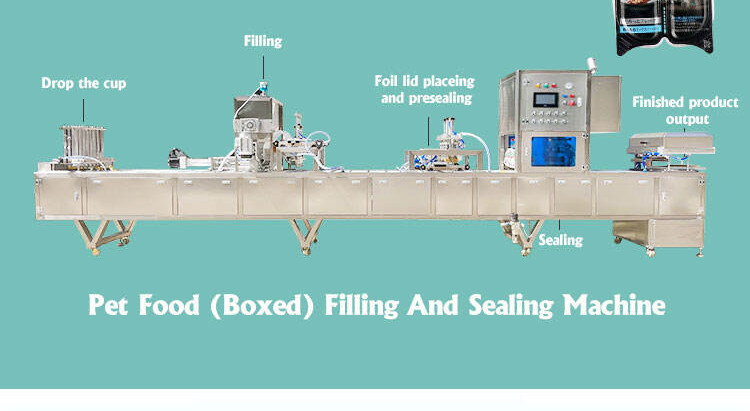

Pet food filling and sealing machine is a professional equipment for pet food packaging, which can realize accurate filling and sealing of pet food.
Pet food filling and sealing machine is a professional equipment for pet food packaging, which can realize accurate filling and sealing of pet food.
Filling principle: Through the automatic control system, the material is transported from the storage tank to the filling head through the pipeline, and then accurately filled into the container by the filling head. According to the characteristics of different products, different filling methods such as gravity filling, vacuum filling, and pressure filling can be adopted.
Sealing principle: Usually, the packaging material of the sealing part is softened by the heating element, and then the pressure is applied by the pressing device to tightly bond the sealing part together. Finally, the cooling device is used to quickly solidify and shape the seal to achieve the sealing effect.

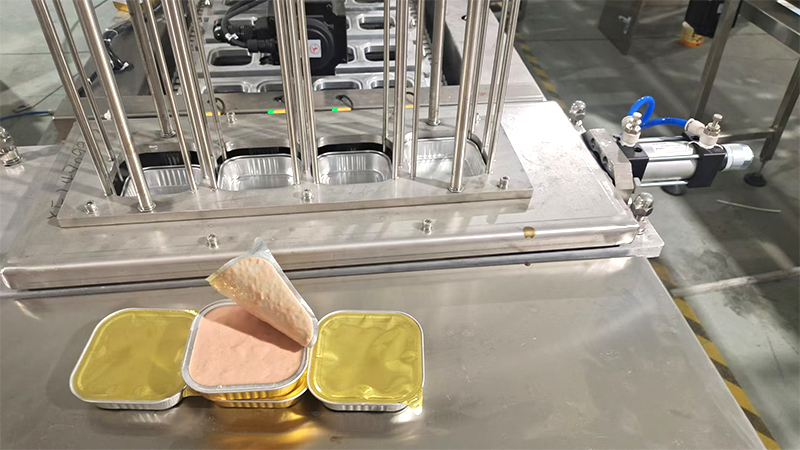

It is specialized in the food sealers vacuum packing for pet wet food like meat paste, meat sauce etc. For this type of food, the filling and sealing machine needs to have good sealing properties to prevent the contents from leaking and deteriorating.
